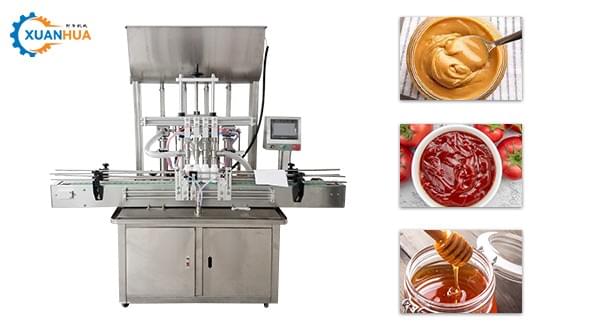

Paste and Liquid Filling Machine
This series of filling machines is a product that is modified and innovated by the company with reference to foreign advanced filling technology. Its structure is simpler and more reasonable, with higher precision and easier operation. It is suitable for daily chemical, food, pesticide, and special industries. It is an ideal equipment for filling of high viscosity fluids and pastes. The design is reasonable, the model is small, the operation is convenient, and the filling amount adjustment handle is provided, the filling speed can be adjusted arbitrarily, and the filling precision is high. The filling valve head is equipped with anti-drip, anti-drawing and lifting devices. This series of filling machines are divided into single-head 、 double-headed and explosion-proof models.
Contacts Us
E-mail: saler05@cnxuanhua68.com
Phone: +86 13007535622
WhatsApp: +86 13007535622
WeChat: +86 13007535622
ADD: Room 1508,Building A,Hanghai Guangchang,Hanghai road cross LianYun Road,Erqi district,Zhengzhou City,Henan Province,China

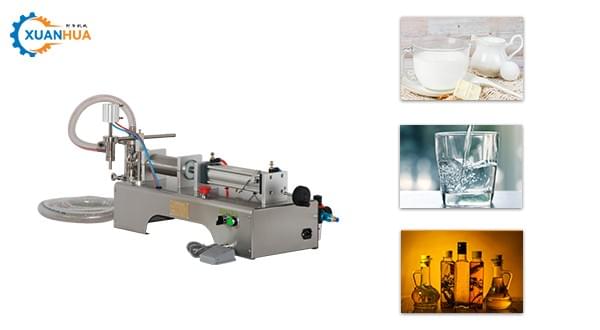

XH-DG
Voltage: AC220/110 V 50/60Hz
Power: 20 w
Air Pressure: 0.4-0.6 Mpa
Filling Speed: 5-25 Bottles/Min
Filling Accuracy: ±1%
Optional Model:
5-100 ml
10-300 ml
50-500 ml
100-1000 ml
500-3000 ml
1000-5000 ml

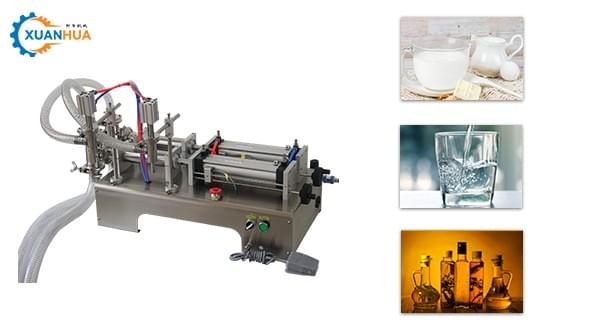

XH-SG
Voltage: AC220/110 V 50/60Hz
Power: 50 w
Air Pressure: 0.4-0.6 Mpa
Filling Speed: 10-50 Bottles/Min
Filling Accuracy: ±1%
Optional Model:
5-100 ml
10-300 ml
50-500 ml
100-1000 ml
500-3000 ml
1000-5000 ml

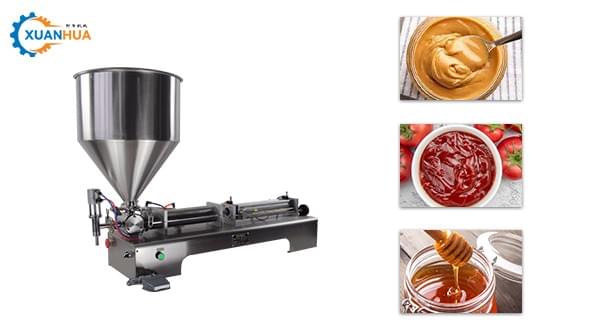

XH-DY
Voltage: AC220/110 V 50/60Hz
Power: 20 w
Air Pressure: 0.4-0.6 Mpa
Filling Speed: 5-25 Bottles/Min
Filling Accuracy: ±1%
Optional Model:
5-100 ml
10-300 ml
50-500 ml
100-1000 ml
500-3000 ml
1000-5000 ml

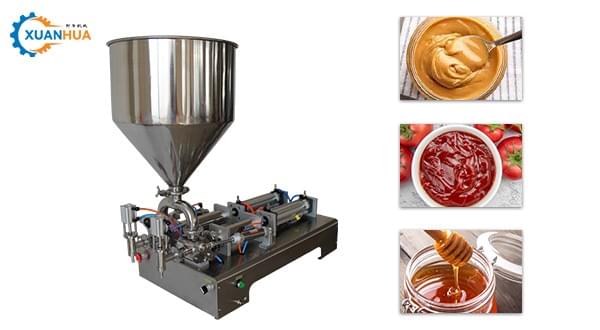

XH-SY
Voltage: AC220/110 V 50/60Hz
Power: 50 w
Air Pressure: 0.4-0.6 Mpa
Filling Speed: 10-50 Bottles/Min
Filling Accuracy: ±1%
Optional Model:
5-100 ml
10-300 ml
50-500 ml
100-1000 ml
500-3000 ml
1000-5000 ml

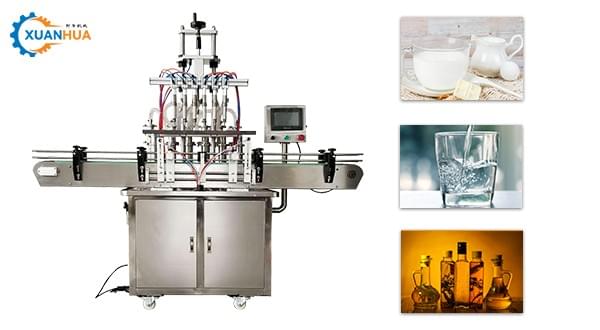

XH-AG
Voltage: AC220/110 V 50/60Hz
Power: 0.5 kw
Air Pressure: 0.4-0.6 Mpa
Filling Accuracy: ±1%
Filling Nozzle: 2/4/6/8/10/12 Nozzles
Optional Model:
5-100 ml
10-300 ml
50-500 ml
100-1000 ml
500-3000 ml
1000-5000 ml
XH-AY
Voltage: AC220/110 V 50/60Hz
Power: 0.5 kw
Air Pressure: 0.4-0.6 Mpa
Filling Accuracy: ±1%
Filling Nozzle: 2/4/6/8/10/12 Nozzles
Optional Model:
5-100 ml
10-300 ml
50-500 ml
100-1000 ml
500-3000 ml
1000-5000 ml

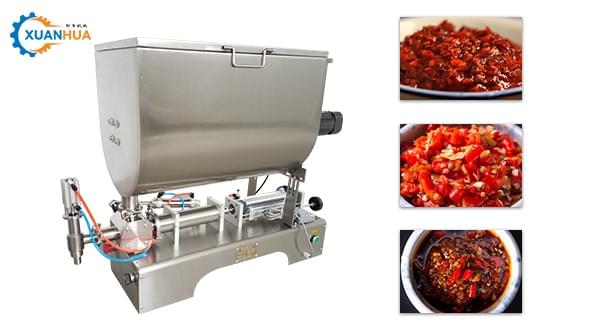

XH-SGH/DGH
Filling Range:
5-100 ml
10-300 ml
50-500 ml
100-1000 ml
500-3000 ml
1000-5000 ml
Filling Speed: 20-50 bottles/min
Working Pressure: 0.4-0.6 Mpa
Voltage: 220/110 V 50/60Hz 120W
Material: 304 Stainless Steel

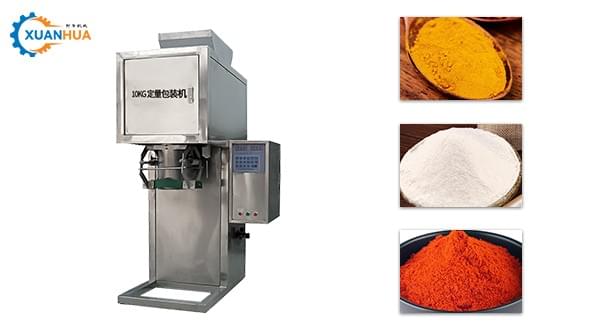

BZ-D10
Applicable Material: Powder/MIxture
Measuring Range: 4-10 kg
Motor Power: 380V 1.5kw
Filling Speed: 4-10 Packs/Min
Air Consumption: 1 m³/h
Dimesion: 600*1400*2000 mm

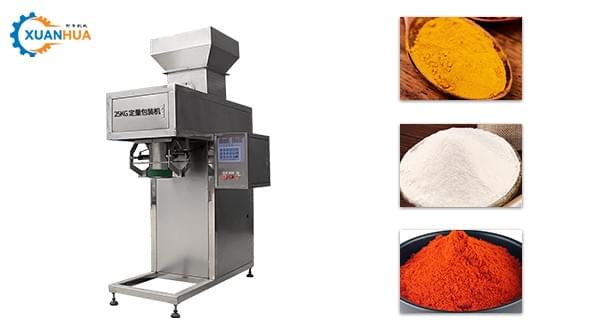

BZ-D25
Applicable Material: Powder/MIxture
Measuring Range: 5-50 kg
Motor Power: 380V 1.5kw
Filling Speed: 3-8 Packs/Min
Air Consumption: 1 m³/h
Dimesion: 1000*1200*2500 mm
BZ-D50
Rounnd bar working capacity: 6-50 mm
Deformed bar working capacity: 6-45 mm
Diameter of Ddisc: 378 mm
Working mode: Manual
Motor power: 5.5 kw
Working speed: 3/7/14 r/min
Weight: 386 kg
Dimension: 880*880*750 mm
BZ-F2
Applicable Material: Powder/MIxture
Measuring Range: 1-5 kg
Motor Power: 380V 0.9kw
Filling Speed: 1200-3500 Packs/h
Filling Accuracy: ±0.1%
Dimesion: 690*1060*1900 mm
BZ-FC
Applicable Material: Powder/MIxture
Measuring Range: 1-5 kg
Motor Power: 380V 1.5kw
Filling Speed: 1500-4500 Packs/h
Filling Accuracy: ±0.1%
Dimesion: 690*1060*2000 mm
BZ-FC+T
Applicable Material: Powder/MIxture
Measuring Range: 1-5 kg
Motor Power: 380V 0.9kw
Filling Speed: 360-720 Packs/h
Filling Accuracy: ±0.1%
Dimesion: 690*1060*1900 mm

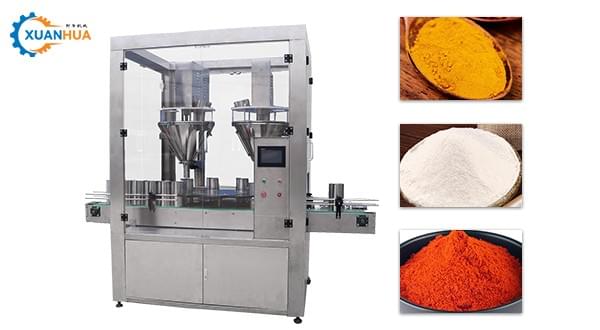

BZ-FZX
Applicable Material: Powder/MIxture
Measuring Range: 0.03-5 kg
Motor Power: 380V 2kw
Filling Speed: 1000-4500 Packs/h
Filling Accuracy: ±0.5-5 g
Dimesion: 3000*2500*2100 mm
BZ-FST
Applicable Material: Powder/MIxture
Measuring Range: 0.03-5 kg
Motor Power: 380V 2kw
Filling Speed: 1500-3300 Packs/h
Filling Accuracy: ±0.5-5 g
Dimesion: 3000*2500*2100 mm
